High Efficiency 100W Monocrystalline Solar Panel for RV, Marine, and Off-Grid Applications
High Efficiency 100W Monocrystalline Solar Panel for RV, Marine, and Off-Grid Applications
⏰ ¡alta demanda! - Últimas unidades ⏰
No se pudo cargar la disponibilidad de retiro

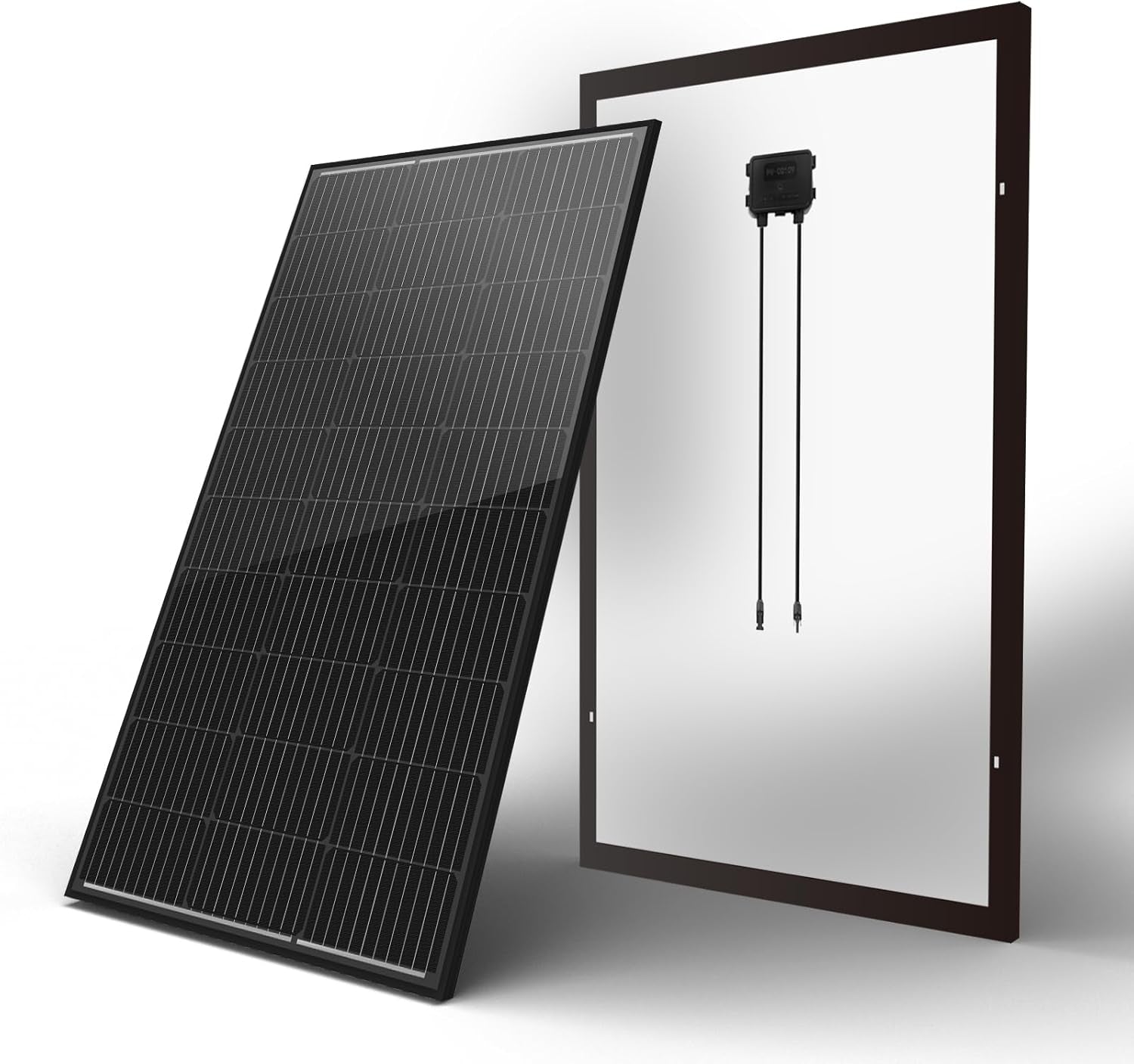

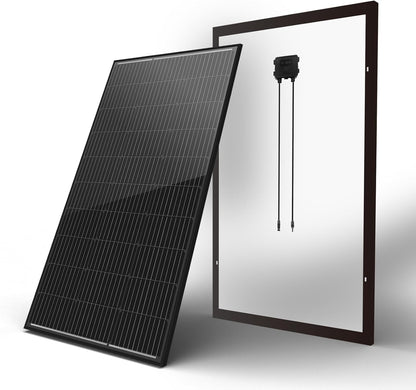

- Refreshed Design: Generates power from both sides. The rear panel captures reflected light , boosting energy output. Higher reflectivity = more electricity. For optimal rear-side gains, install 28-50 inches (0.7-1.3m) above ground.

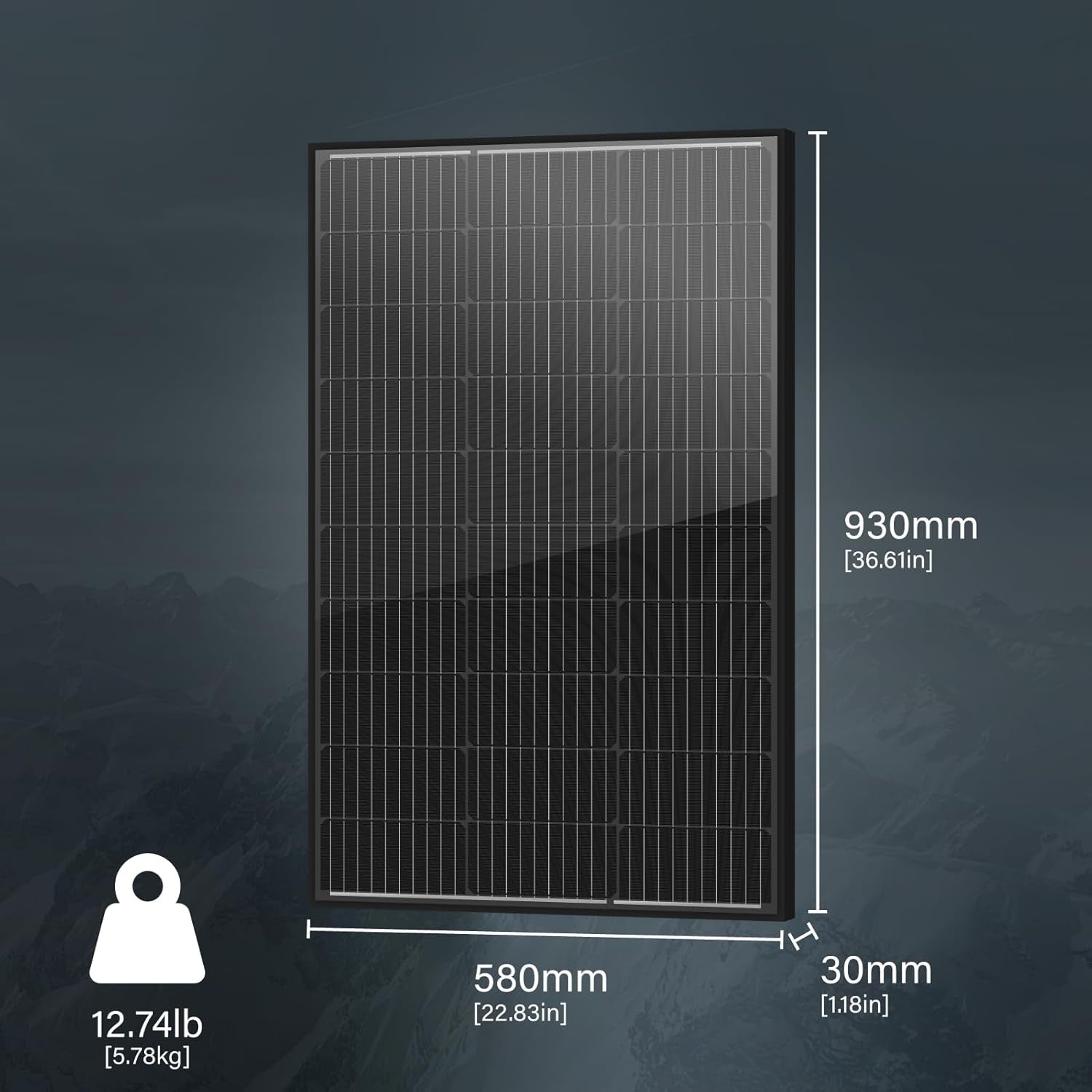

- Rugged Design: This solar panel’s dimensions are 36.61*22.83*1.18inch and its weight is 12.74Ibs. It can withstand high winds at 2400PA and snow loads of 5400PA.
- Maximum Power Capabilities: Its maximum power (Pmax) is 100W, with Voltage at Pmax (Vmp) at 17.1V, and the Current at Pmax (Imp) at 5.85A.

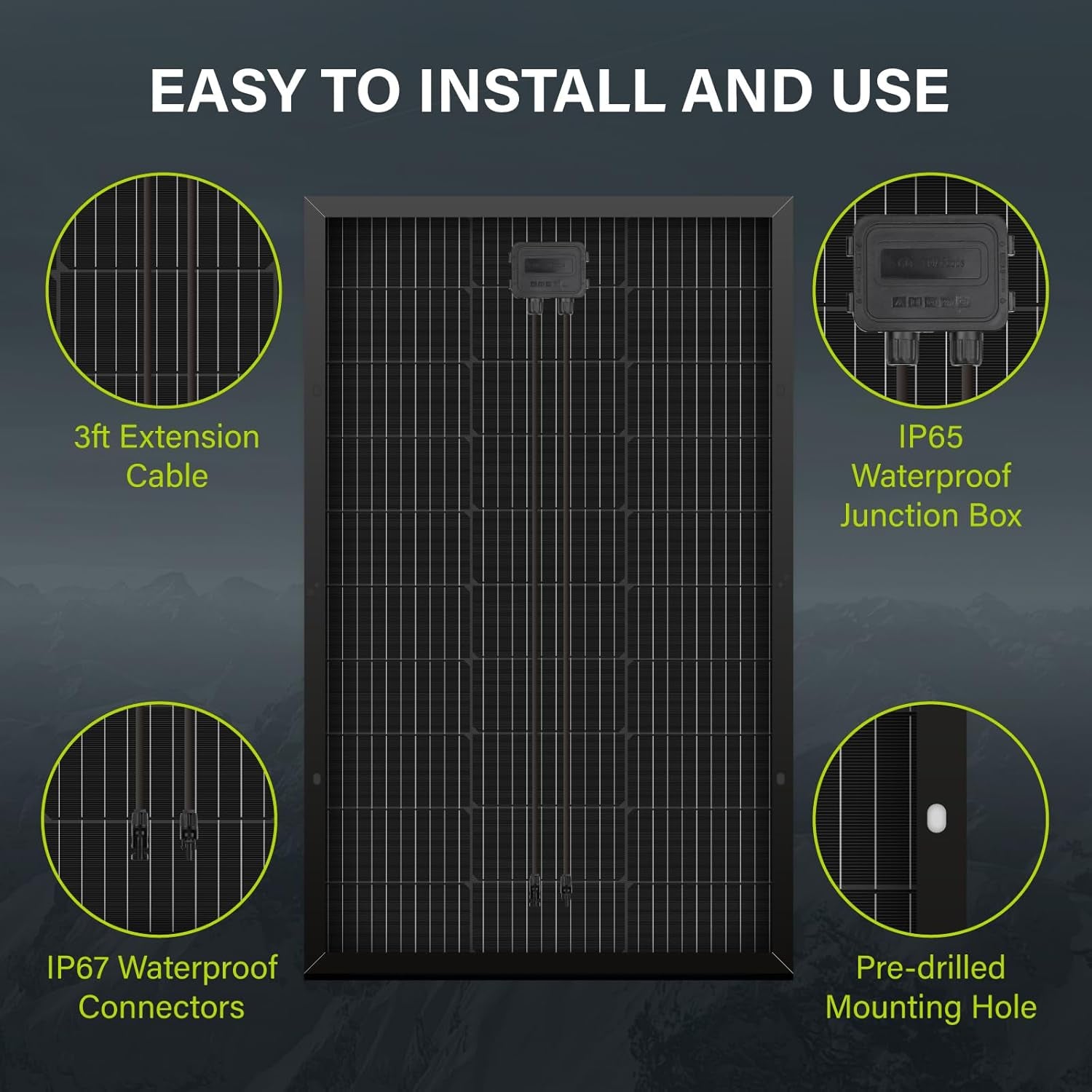

- Easy Installation: This solar panel comes pre-drilled for easy installation. Diodes are pre-installed within the junction box, alongside a pair of pre-attached 3ft solar connectors cables, making installing the panel a hassle-free experience.
- After-sales Service: With a 2-year material and parts workmanship assurance.10 years of power output is greater than 90%, 25 years of power output is greater than 80%.
Product description
| Model | NPA100S-12J-BC |
| Power Output | 100W |
| Voltage MPP Vmp | 17.10V |
| Current MPP Imp | 5.85A |
| Voltage Open Circuit Voc | 20.40V |
| Short Circuit Current Isc | 6.21A |
| Temperature Coefficient Of Voc | -(80±10)mV/°C |
| Temperature Coefficient Of Isc | (0.065±0.015)%/°C |
| Cells | Monocrystalline Silicon |
| Solar Cells Grade | Class A High Efficiency |
| Module Dimension(in./mm) | 36.61[930]x22.83[580]x1.18[30] |
| Weight(lbs/kg) | 12.74[5.78] |
-
Does a Solar Panel produce full power?
In most cases, it is normal for a solar panel to not be able to provide its full nominal power.
Factors affecting the performance of solar panels: Peak Sun Hours， Sunlight Angle， Operating Temperature， Installation Angle， Panel Shading, Etc...
-
How to test a solar panel?
The ideal conditions: Noon, clear sky, 25° tilt to the sun, battery is less than 40% SOCC. Disconnect the solar panel from any other loads, using a multimeter to test the panel's current and voltage.
-
How does temperature affect solar panel efficiency?
Solar Panel Efficiency & Temperature: -Test Temp: 77°F/25°C; -Peak Efficiency Range: 59°F/15°C to 95°F/35°C; -Temp Impact: Efficiency decreases with temperature rise. -Example: Temp coefficient of -0.5% → Power reduces by 0.5% per 50°F/10°C rise.
-
How to install our solar panels using different brackets?
There are mounting holes on the panel frame for easy installation using a variety of brackets. Most compatible with Newpowa's Z-mount, tilt-adjustable mount, and pole/wall mount, making panel mounting suitable for a variety of applications.
-
Can I connect different solar panels together?
Though mixing different solar panels is not recommended, the mismatch can be achievable as long as each panel’s electrical parameters (voltage, current, wattage) are carefully considered.
Solar Panel
| Customer Reviews | 4.5 out of 5 stars 1,648 | 4.5 out of 5 stars 1,648 | 4.5 out of 5 stars 276 | 4.5 out of 5 stars 854 | 4.5 out of 5 stars 854 | 4.5 out of 5 stars 854 |
| Price | $69.99$69.99 | — | $190.50$190.50 | $179.99$179.99 | $135.99$135.99 | $209.99$209.99 |
| MAX Watt | 100W | 100W | 180W | 200W | 200W | 220W |
| Cell Type | Monocrystalline | Monocrystalline | Monocrystalline | Monocrystalline | Monocrystalline | Monocrystalline |
| Dimension(in./mm) | 36.61[930]x22.83[580]x1.18[30] | 28.54[725]x27.76[705]x1.18[30] | 45.47[1155]x30.12[765]x1.38[35 | 52.36[1330]x30.12[765]x1.38[35 | 53.94[1370]x30.12[765]x1.38[35 | 56.69[1440]x30.12[765]x1.38[35 |
| Weight(lbs/kg) | 12.74[5.78] | 5.90[13.01] | 21.56[9.78] | 24.43[11.08] | 23.24[10.54] | 26.62[12.07] |
| System Voltage | 12V | 12V | 12V | 12V | 12V | 12V |
